DBOS

DBOS applications can send workflow observability data to Parseable in two paths:

• Logs and traces are exported directly from the DBOS application through OpenTelemetry OTLP HTTP.
• Metrics are scraped from DBOS Conductor's Prometheus/OpenMetrics endpoint and forwarded to Parseable.

Requirements

• A DBOS TypeScript application using @dbos-inc/dbos-sdk
• DBOS TypeScript 4.19 or later for the Conductor metrics endpoint
• A reachable Parseable instance for OTLP logs and traces
• Parseable Enterprise for PromQL metrics storage and querying
• DBOS Conductor for metrics. DBOS Conductor is part of the DBOS Enterprise offering.

Logs and traces

Enable OTLP export in the DBOS app and point logs and traces to Parseable's OTLP ingest endpoints.

import { DBOS } from '@dbos-inc/dbos-sdk';

DBOS.setConfig({
  name: 'dbos-node-starter',
  systemDatabaseUrl: process.env.DBOS_SYSTEM_DATABASE_URL,
  applicationVersion: '0.1.0',
  enableOTLP: true,
  otlpLogsEndpoints: [`${process.env.PARSEABLE_OTLP_ENDPOINT}/v1/logs`],
  otlpTracesEndpoints: [`${process.env.PARSEABLE_OTLP_ENDPOINT}/v1/traces`],
  otelAttributeFormat: 'semconv',
});

await DBOS.launch({
  conductorURL: process.env.DBOS_CONDUCTOR_URL,
  conductorKey: process.env.DBOS_CONDUCTOR_KEY,
});

Configure Parseable OTLP headers separately for logs and traces. Use X-P-Stream for the destination stream name; Parseable derives the signal type from the endpoint path.

PARSEABLE_OTLP_ENDPOINT=http://parseable.example:8000

OTEL_EXPORTER_OTLP_LOGS_HEADERS=Authorization=Bearer <parseable-api-key>,X-P-Stream=dbos-logs
OTEL_EXPORTER_OTLP_TRACES_HEADERS=Authorization=Bearer <parseable-api-key>,X-P-Stream=dbos-traces

After restarting the DBOS app, trigger a workflow and check the dbos-logs and dbos-traces streams in Parseable.

Metrics

DBOS metrics are exposed by DBOS Conductor, not by the application process directly. The app connects to Conductor using the Conductor URL and API key:

DBOS_CONDUCTOR_URL=ws://localhost:8090
DBOS_CONDUCTOR_KEY=<dbos-conductor-api-key>

Conductor exposes metrics at:

/v1/metrics

The endpoint is Prometheus/OpenMetrics compatible and requires the Conductor API key as a bearer token.

curl \
  -H "Authorization: Bearer <dbos-conductor-api-key>" \
  -H "Accept: application/openmetrics-text" \
  http://localhost:8090/v1/metrics

Example metrics include:

dbos_conductor_v1_executor_count
dbos_conductor_v1_workflow_pending_count
dbos_conductor_v1_workflow_oldest_pending_timestamp_seconds

Scrape with Prometheus

Use Prometheus to scrape DBOS Conductor and forward metrics to Parseable.

scrape_configs:
  - job_name: dbos-conductor
    metrics_path: /v1/metrics
    authorization:
      type: Bearer
      credentials_file: /etc/prometheus/dbos_api_key
    static_configs:
      - targets:
          - conductor:8090

remote_write:
  - url: http://parseable.example:8000/v1/prometheus/write
    authorization:
      type: Bearer
      credentials: <parseable-api-key>
    headers:
      X-P-Stream: dbos-conductor-metrics

Validate

Check that Conductor is available:

curl http://localhost:8090/healthz

Check that Prometheus is scraping Conductor:

curl 'http://localhost:9090/api/v1/query?query=dbos_conductor_v1_executor_count'

Check Parseable:

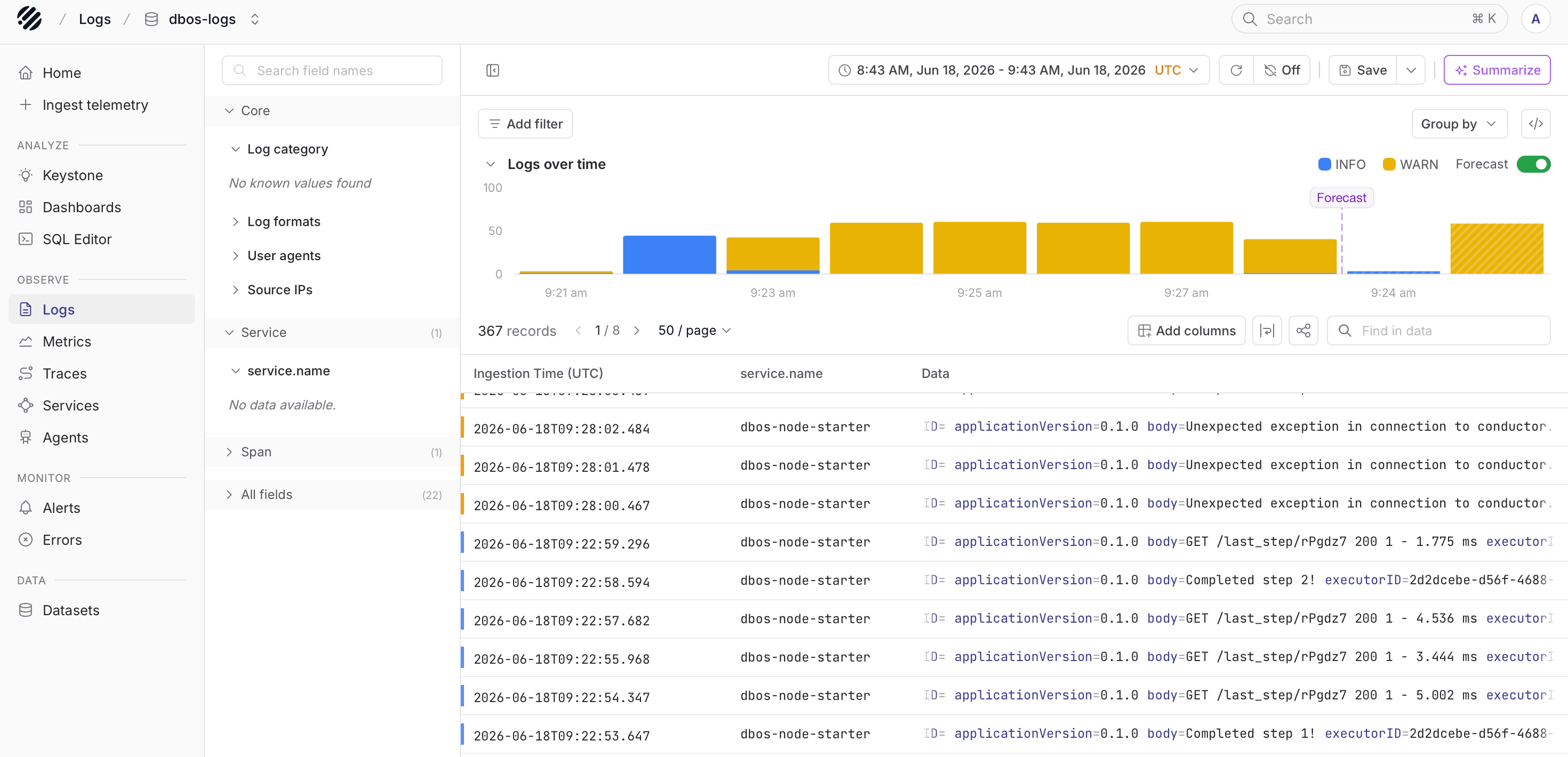

• dbos-logs should contain DBOS application log records.

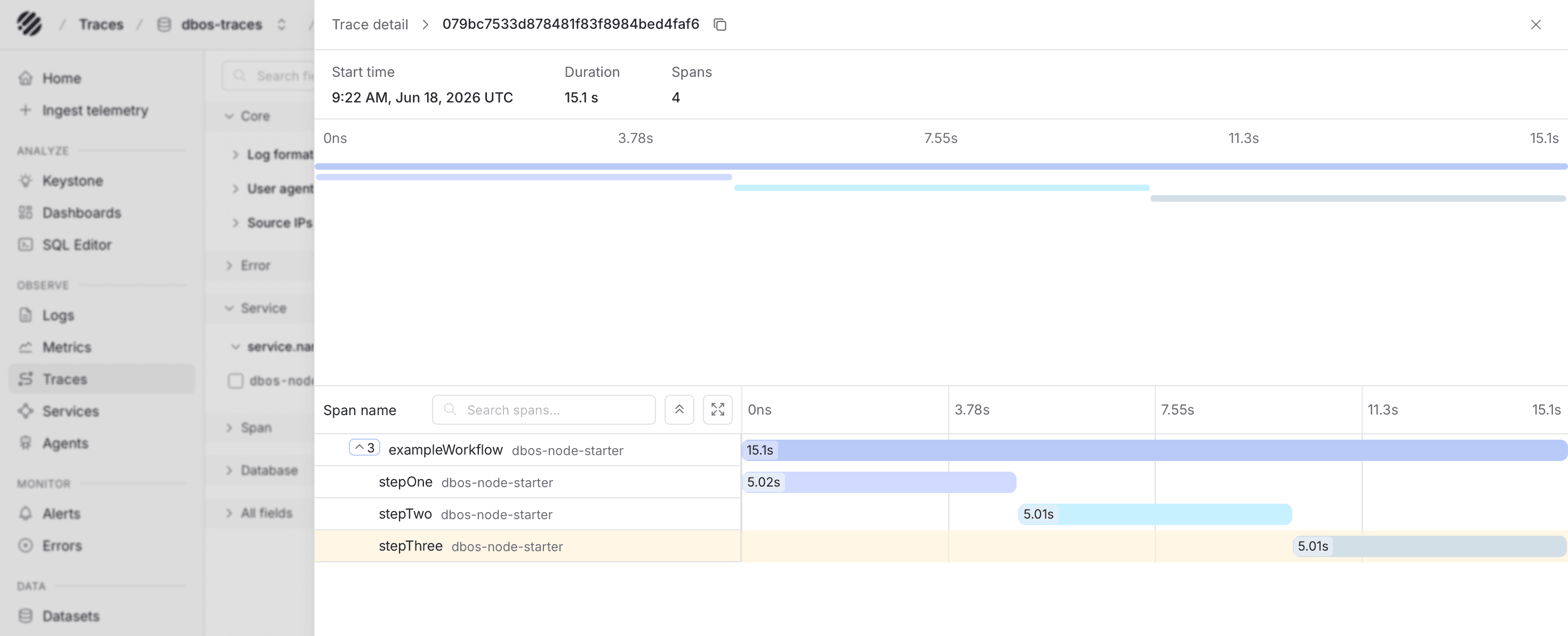

• dbos-traces should contain DBOS workflow and step spans.

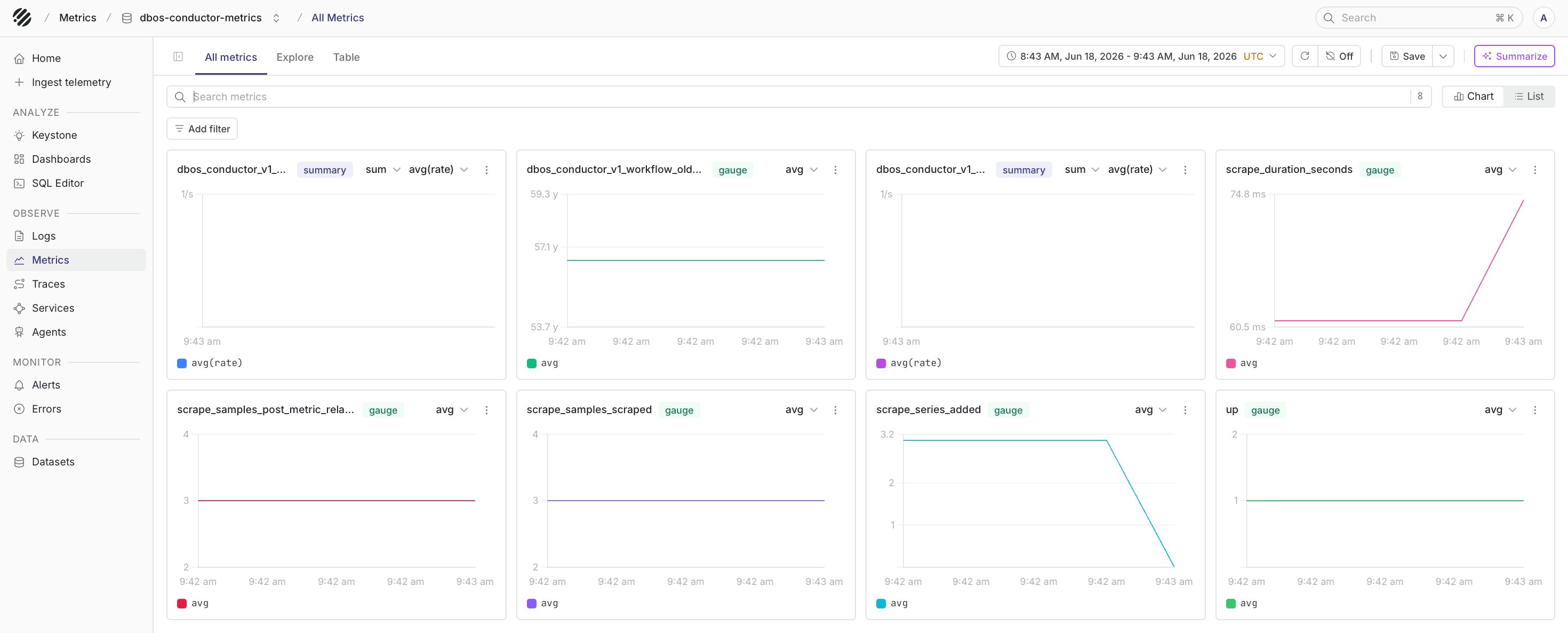

• dbos-conductor-metrics should contain DBOS Conductor metrics when Parseable Enterprise metrics ingest is enabled.

Troubleshooting

• Logs do not appear - Confirm the logs exporter uses the /v1/logs endpoint and restart the DBOS application after changing environment variables.
• Traces do not appear - Confirm the traces exporter uses the /v1/traces endpoint and restart the DBOS application after changing environment variables.
• Metrics endpoint returns unauthorized - Pass the DBOS Conductor API key as a bearer token.
• No metrics endpoint exists - Metrics require DBOS Conductor. The regular DBOS application server does not expose /v1/metrics.
• PromQL is unavailable in Parseable - PromQL metrics querying requires Parseable Enterprise.
